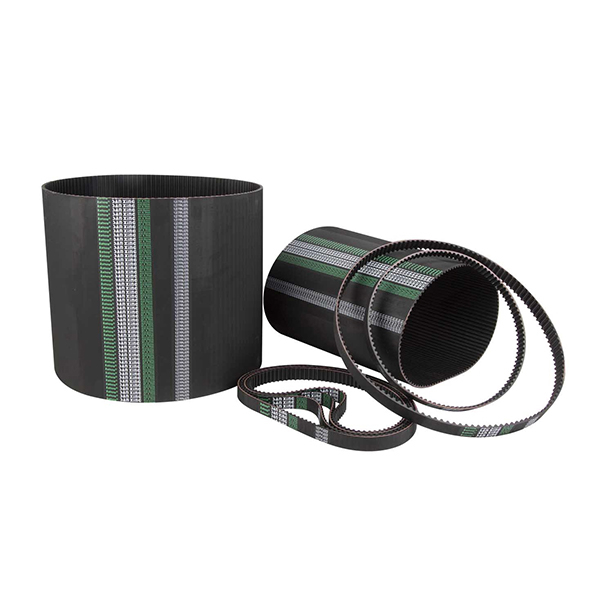

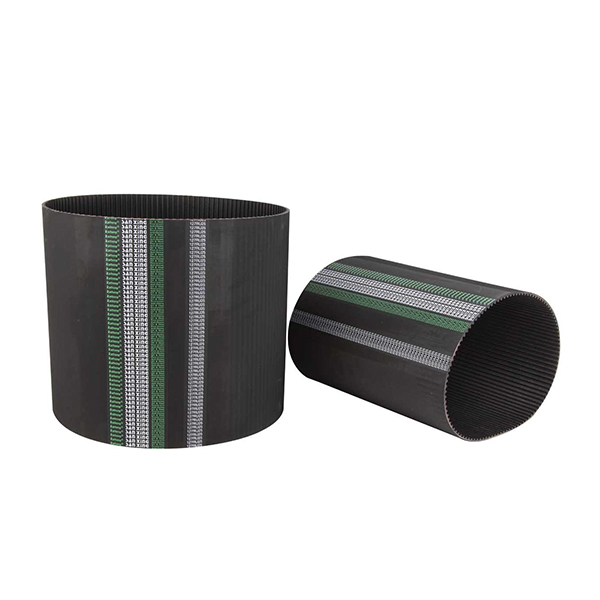

Production Features of Imperial Type Timing Belts
The trapezoidal tooth profile makes this belt well suited for use in positioning applications. Imperial Type Timing Belts are suitable for office machine tools, postage equipment, Sewing machines, vending machines, agriculture, outdoor power equipment, food processing, HVAC, oil fields, wood, paper, sand and gravel applications
Features:
l Quieter running
l No lubrication needed
l Economical operation
Advantages:
l Trapezoidal tooth profile
l High flexibility
Low to medium load bearing capacity

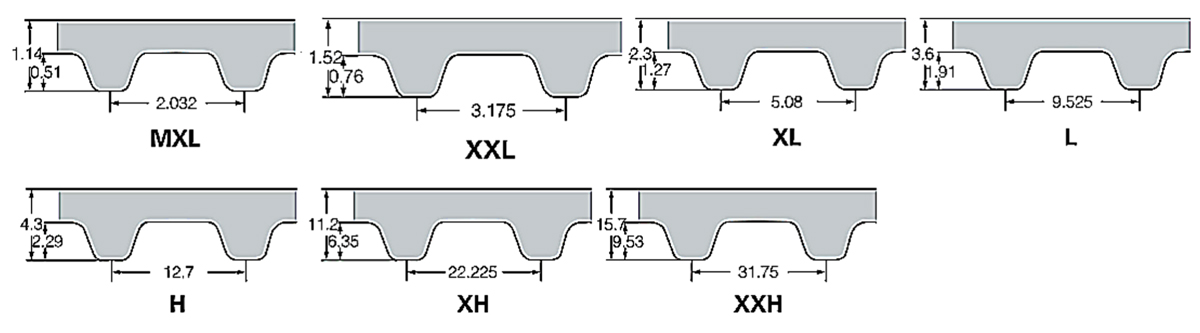

Product specification of Imperial Type Timing Belts
Imperial Type Timing Belts | ||||
Type | Picth mm | Tooth Height mm | Belt thickness mm | Production Length |
MXL | 2.032 | 0.51 | 1.14 | 26-492 teeth |
XL | 5.080 | 1.27 | 2.30 | 22-1064 XL |
L | 9.525 | 1.91 | 3.60 | 67-2700 L |
H | 12.700 | 2.29 | 4.30 | 145-2720 H |
XH | 22.225 | 6.35 | 11.20 | 420-2275 XH |
XXH | 31.750 | 9.53 | 15.70 | 625-2000 XXH |
Further sizes upon request. | ||||
Production details &Testing methods

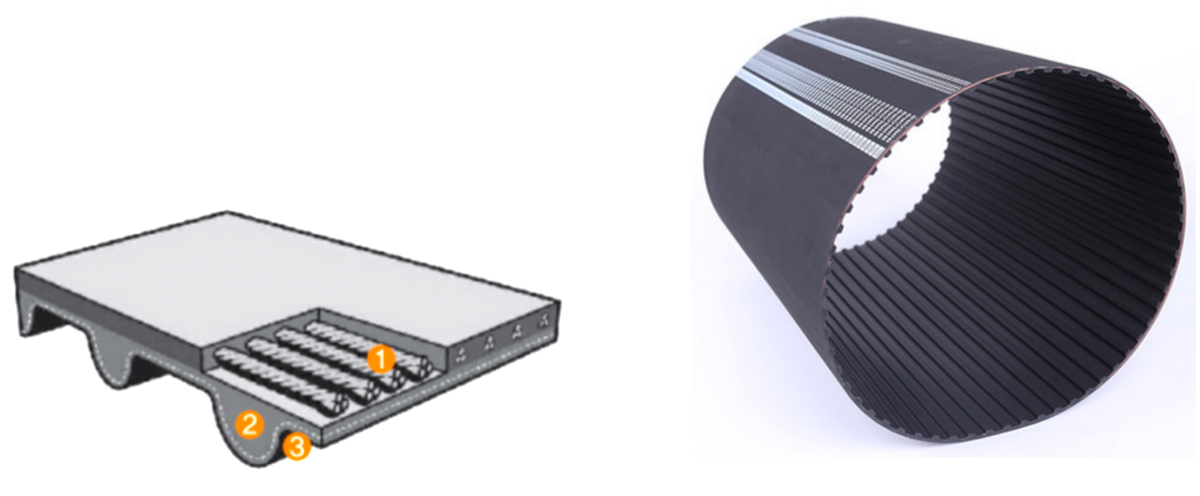

Production details
Construction | Functions & Materials |
01 Tension member | Fiberglass cords with high tensile strength, excellent flexibility and which eliminate belt stretching. |
02 Rubber teeth with CR | Excellent heat and oil resistance, adhesion both on tensile member and tooth fabric. |
03 Nylon fabric | Excellent wear-resistant, low friction coefficient facing gives long service life. |
Testing methods

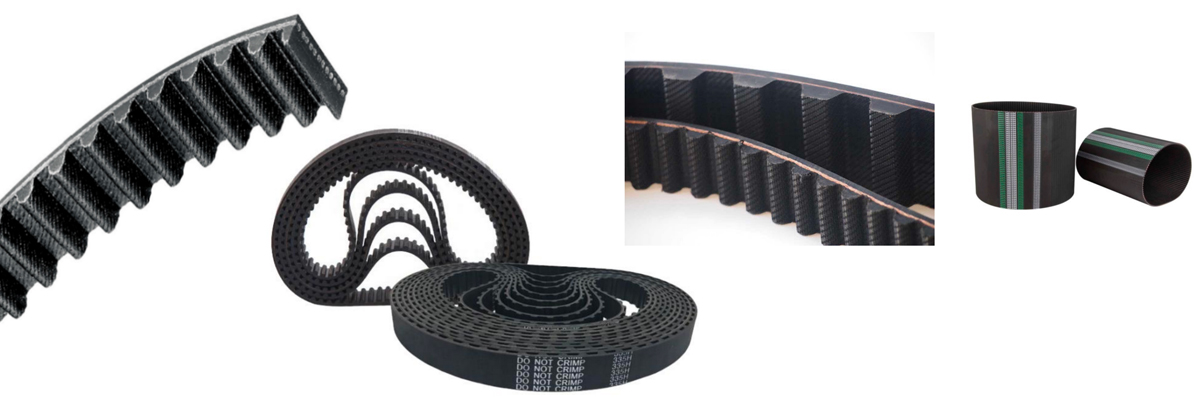

Product Qualification of Rubber Timing Belts
Zhejiang Sanxing Rubber Belt Co., Ltd. was established in 1989. 350 workers, 8500㎡ non-dust workshops, 34 years experience, We specializes in designing and producing Raw Edge Cogged v-belt,Poly V-Belt,Timing Belt,Double Sided Rubber/PU Timing Belt,Teeth-Wedge Belt,Variable Speed Belt,other related products.These products are widely used in the area of automotive,scooter,industrial and agricultural machinery,household appliances,etc.We have high reputations among our domestic and overseas customers.
Sanxing is a member unit of the National Belt and Pulley Technical Committee and has strong independent research and development capabilities.More than 10 new products have been developed successively,such as toothed V-belts,ATV variable speed V-belts,HNBR Rubber Timing Belts,Double-sided V-belts,Edge-cut V-belts for Agricultural machinery,Bicycle Timing belts,and motorcycle Timing belts.In the field of transmission belts,it has won 2 national invention patents and 24 utility models;organized the drafting of 2 national standards,participated in the drafting of 9 national standards and 4 industry standards.
Sanxing has always pursued the tenet:winning by quality,pragmatic innovation,honest management,and continuous improvement.The company passed the IS09001 quality management system certification in 2005;and passed the ISO14001 environmental management system certification in 2018.
Delivery,Shipping and Service
l What about the delivery time?
2-3 days for sample, 45 working days for mass production. Depends on qty/sizes
l The payment term
TT / LC /west union / PayPal / cash.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
l Package
Standard export cartons, box dimension: 470x400x460mm
l Shipping
Sea/ Air/ UPS/DHL/TNT/FedEx
l After Service
We will replace the belts if customer receives the defective belts.
FAQ
Q.What’s the raw material?
A. CR, Fiberglass cord; aramid / kevlar available
Q. What’s the minimum order qty?
A. one sleeve each sizes, Double sided timing belt 2 sleeves.(1000$/order)
Q.Can we use our brand/LOGO ?
A. Yes, we can print customers’ brands/LOGO.
Q. What’s the sleeve width?
A. 450 mm ( 210 mm Double sided timing belt)
